BMW M1 review – the most underrated 1970s supercar?

BMW must have been a wonderful place to work in the mid-1970s. The near bankruptcy the company faced at the end of the 1950s was long forgotten and its new 5-series and 3-series models were selling well on the back of abundant critical acclaim. The soon to be announced 6- and 7-series models would further enhance the marque’s model line up.

Then there was BMW’s recently formed Motorsport department headed up by Jochen Neerpasch that had seen the CSL ‘Batmobile’ coupes win titles around the globe and had an exciting road car program planned. But what Neerpasch really wanted was a full-on racer with which BMW Motorsport could take on arch-rival Porsche in Group 5 racing. Thus the M1 was born.

BMW didn’t have the production capacity to make the required number of cars in Munich in order to gain homologation so it commissioned Lamborghini to design the chassis and assemble the car. Neerpasch dictated that the car was to be mid-engined – a first for BMW – and its powerplant was to be a 3.5-litre straight-six.

Lamborghini let the side down as far as producing the cars was concerned and by the time BMW could make alternative arrangements, the requirements for Group 5 homologation had changed. The road car finally saw the light of day in early 1979 and was universally acclaimed as a remarkable achievement. It was BMW’s first mid-engined machine and stood alone in that until the arrival of the i8. It was also the first BMW road car to feature a four-valve-per-cylinder layout and this engine went on to power two generations of M5 as well as the M635CSi coupe.

History

Knowing that BMW Motorsport didn’t have the capacity to hand-build the 400 cars required for Group 5 homologation the then boss and driving force behind the M1, Jochen Neerpasch, commissioned Lamborghini to design and build the chassis and assemble the car. Lamborghini’s Gianpaolo Dallara might have done a superb job of designing the chassis, but it soon became clear that the company he worked for wasn’t going to be capable of producing the car in sufficient numbers. With rumours of impending financial collapse at Sant’Agata, BMW pulled the plug on Lamborghini’s involvement in the project.

Thus the M1’s production turned into one of the most complex of all time. The glassfibre body was designed by Giorgetto Giugiaro of Ital design, and was produced by Trasformazione Italiana Resina, based just outside Modena. The Lamborghini-designed space-frame chassis was produced by another Italian firm, Marchesi, also in Modena, while Ital Design in Turin bonded the elegant panels to the space-frame, fitted the glass, painted the complete body/chassis units and fitted the dash and some interior and electrical parts.

These part-completed M1s were then shipped to specialist manufacturer, Baur, in Germany for the installation of engines that were hand-built by BMW in Munich, transmissions from ZF, and all the remaining interior trim. The complete vehicles were then shipped to Munich so that BMW Motorsport could, in theory, give each car a final tune, wheel alignment check and road test before packing it off to the lucky customer. The reality was that a significant amount of work was required on the M1s once they rolled back into BMW’s Motorsport department as the build quality from Ital and Baur just wasn’t deemed acceptable.

30

The main upshot of this disastrous production process was that by the time production of the M1 got into its stride, the requirements for Group 5 homologation had changed and this left the M1 all dressed up with nowhere to go… which lead to the Procar series. This acted as support show to the F1 circus and pitched leading F1 drivers against endurance and touring car aces in 470bhp Group 4 M1s. Niki Lauda won the inaugural championship in 1979 with Nelson Piquet taking the title in 1980.

The M1 also took to the track at endurance races such as the 24 Hours of Le Mans where it was campaigned from 1980 until 1986 with various rates of success, but in truth it was outdated and even when packing a turbocharged version of its straight-six pushing out 850bhp in Group 5 guise it wasn’t wholly competitive.

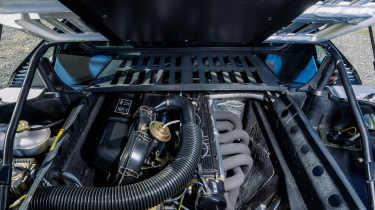

Engine and Transmission

30

The M1’s raison d’être was to go racing so BMW wasn’t too concerned that it was going to lack a 12-cylinder engined favoured by contemporary supercar rivals. Its 3453cc M88/1 straight-six was the work of BMW’s engine guru, Paul Rosche, who also oversaw the company’s F2 successes in the 1970s as well as being responsible for the E30 M3’s S14 four-pot, BMW’s turbocharged F1 unit and the McLaren F1’s S70/3 V12. All told, not a bad resumé.

The M88 in the M1 used the block from the contemporary 635CSi with a four-valve head that was a development of the twin-cam that had been used in the 3.5-litre racing CSLs. It developed 273bhp at 6500rpm and 239lb ft of torque thanks to Kugelfischer-Bosch mechanical injection and Magneti-Marelli ignition.

Like all M engines it featured individual throttle butterflies and to help keep the height of the unit to a minimum and to ensure there was no oil starvation in racing conditions, it had dry-sump lubrication. BMW quoted a 0-62mph time of 5.6sec and a top speed of 161mph, making it BMW’s fastest-ever road car at the time.

Power was transmitted via a ZF five-speed manual and there was a 40 per cent locking limited slip differential, too.

Performance, ride and handling

30

The steel space-frame chassis had been designed for way more power than the 273bhp straight-six could muster in road going trim and when combined with the unassisted rack and pinion steering, the unequal length double wishbones at each corner and height adjustable coil springs with bespoke Bilstein gas-filled dampers, the M1 was quite a handler. It shared the same geometry as the race car and just about the only compromise for the road was the inclusion of softer bushing to aid ride comfort.

Once in, the seats are great, visibility is great and although it betrays its Italian heritage with its offset driving position and weighty steering, neither gets in the way of enjoying and exploiting the M1.

Get up to speed and the steering lightens to the perfect weight and the chassis is quite superb, not only sweetly balanced and exquisitely damped but offering options like a modern car. The cornering line in most cars here is fixed until you’re winding off the lock but in the BMW you can steer or use the throttle to confidently adjust and adapt your line. And while it’s got half the cylinder count of other exotics and just shy of 280bhp, the now legendary 3.5-litre straight-six is glorious and would never be more impressive than it is in the back of the lightweight M1. Thanks to Kugelfischer-Bosch mechanical fuel injection it starts on the key and has beautiful manners, pulling from low revs with a smooth, character-rich vigour and pushing on to the redline with thrilling enthusiasm and the almost aristocratic drawl typical of a straight-six.

In short, the M1 is brilliant. It’s one of the most polished and complete supercars of its age. In some respects it was a dead-end for BMW but some of the characteristics and talents it brought to the supercar scene pointed to the future – low profile tyres and precise yet malleable dynamics, fuel injection and electronic ignition control too.

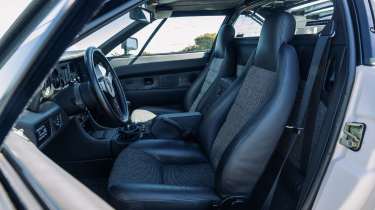

Interior

30

If the exterior had the required supercar wedge-shape and the chassis, suspension and engine were pretty cutting edge, the M1’s interior could be seen as a bit of a let down - it was rather plain. The seats were a simple half leather/half cloth design, and there was a relatively basic dash layout and a smattering of switchgear from the BMW parts bin.

Drivers over six-feet tall will struggle to get comfortable as the bulkhead separating the cockpit from the engine bay prevents the seat going far enough backwards and the seats themselves lack a little bit in the way of lateral or lumbar support. The pedals are heavily off-set to the right in this LHD-only machine but you soon get used to it and by the standards of the day it was well equipped with a stereo, and such creature comforts as air conditioning and electric windows.

Price and rivals

30

When the M1 went on sale in the UK it cost an eye-watering £37,500 – more than a Ferrari 512 BB (£35,100) and the Maranello machine had the name, even more arresting looks, and a 5-litre 12-cylinder engine. A De Tomaso Pantera GTS wasn’t as polished a proposition – but it cost £22,786, which would have almost left you enough change to buy a BMW 635CSi.

Porsche’s 911 Turbo might not have had the mid-engined layout but was almost as quick as the M1 and was £10,000 cheaper, while front engined rivals such as the £37,000 Aston Martin V8 Vantage and the £35,000 Maserati Khamsin were significantly more practical if not quite as finely honed driving machines as the M1.

Production numbers of the M1 are officially recognised by BMW as being 453 in total, with 399 road cars and 54 competition spec machines. There was a time you could pick one up for less than £50k but these days BMW M’s only mid-engined machine will set you back upwards of £400,000.

Specs
